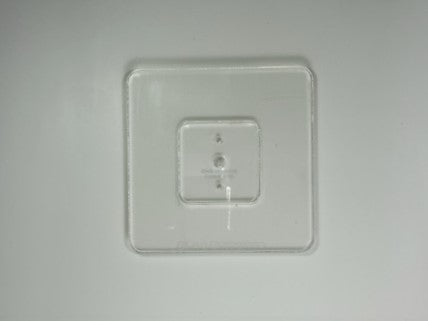

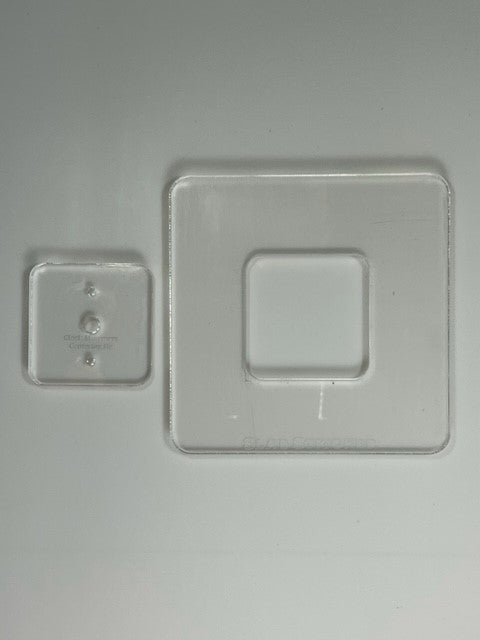

The Clock Mechanism Inlay Jig simplifies the process of routing for your clock movement kit.
Utilize in combination with any of our Clock Kits when working with more than 0.5" thick material. The Clock Mechanism Inlay Jig works best when coupled with our Main Frame (found in any of our Starter Kits), increasing available clamping surface area.
Clock movement recess is based off a clock mechanism with the following dimensions:
- shaft length: 28mm/1.1 inch
- clock movement case: approx. 55 x 55 x 16mm/ 2.2 x 2.2 x 0.63 inch
